| 型号 | 频率
(GHz)
| 驻波 | 插入损耗 (dB) | 隔离度
(dB)
| 功率
(dBm)
| 切换时间 (ns) | 工作温度 (℃) | 接口 |
|---|
| TPS1X-0.5G40-50S-A | 0.5-40 | 2.5 | 6.5 | 50 | 23 | <100 | -45~+85 | 2.92-Female |

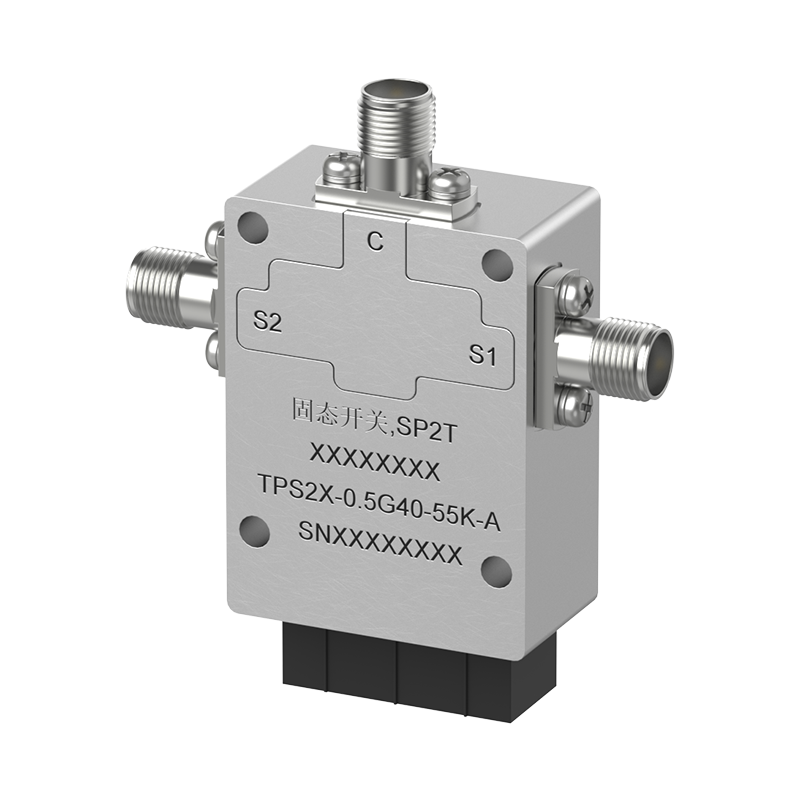

| TPS2X-0.5G40-50S-A | 0.5-40 | 2.5 | 6.5 | 50 | 23 | <100 | -45~+85 | 2.92-Female |
| TPS3X-0.5G40-50S-A | 0.5-40 | 2.5 | 8 | 50 | 23 | <100 | -45~+85 | 2.92-Female |
| TPS4X-0.5G40-50S-A | 0.5-40 | 2.5 | 8 | 50 | 23 | <100 | -45~+85 | 2.92-Female |

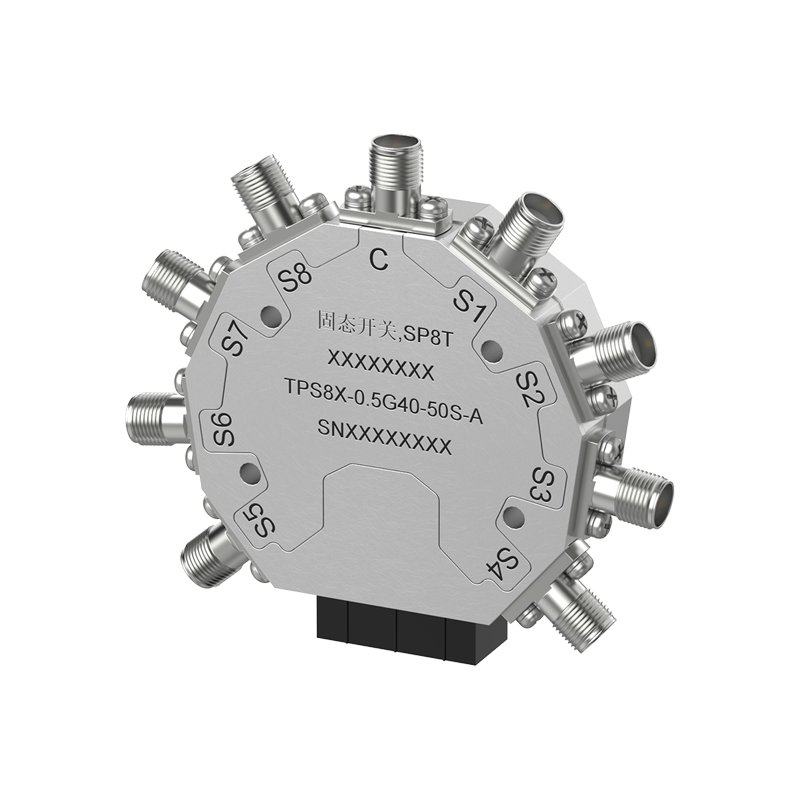

| TPS8X-0.5G40-50S-A | 0.5-40 | 2.5 | 10 | 50 | 23 | <100 | -45~+85 | 2.92-Female |
| TPS2X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 3 | 60 | 37 | <100 | -45~+85 | SMA-Female |
| TPS4X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 3 | 60 | 37 | <100 | -45~+85 | SMA-Female |
| TPS8X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 4 | 60 | 37 | <100 | -45~+85 | SMA-Female |
| TPS16X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 5 | 60 | 37 | <100 | -45~+85 | SMA-Female |

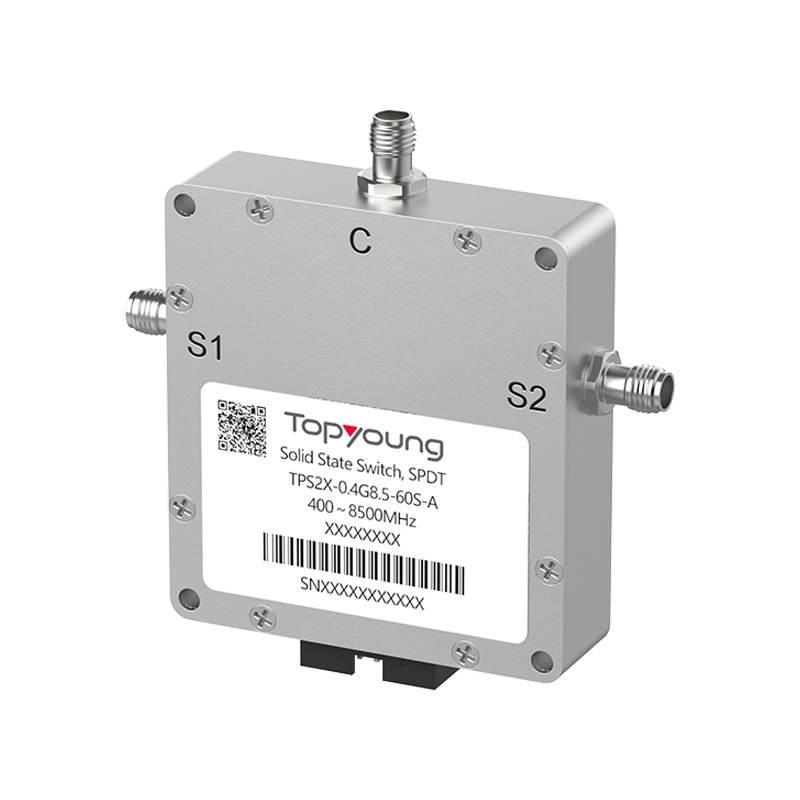

| TPS2X-0.4G8.5-60S-A | 0.4~8.5 | 1.4 | 4 | 60 | 33 | <20 | -45~+70 | SMA-Female |
| TPS4X-0.4G8.5-60S-A | 0.4~8.5 | 1.4 | 5 | 60 | 33 | <20 | -45~+70 | SMA-Female |
| TPS8X-0.4G8.5-60S-A | 0.4~8.5 | 1.5 | 6 | 60 | 33 | <20 | -45~+70 | SMA-Female |

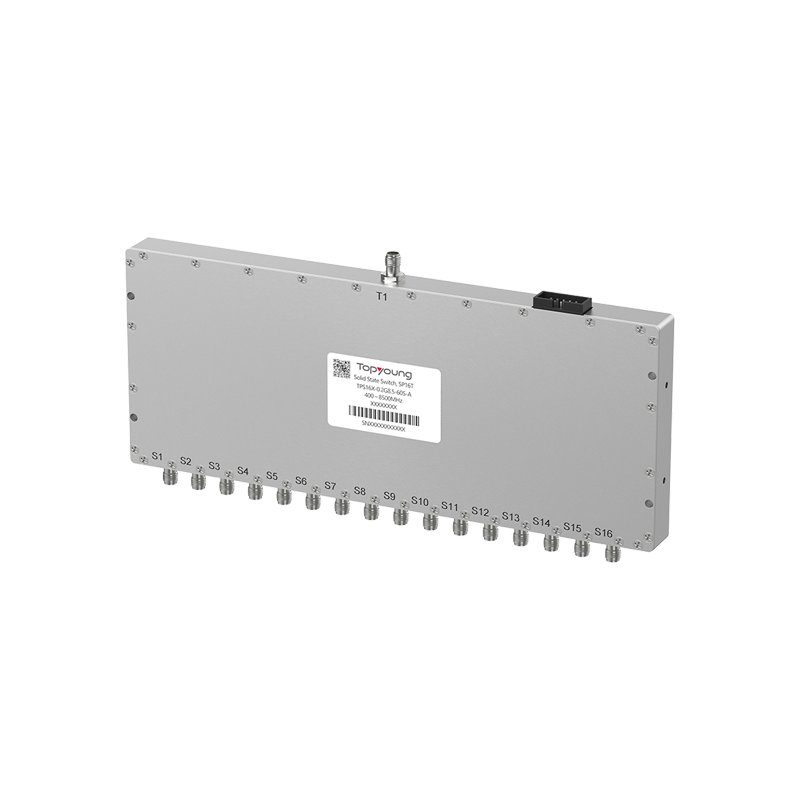

| TPS16X-0.4G8.5-60S-A | 0.4~8.5 | 1.5 | 7 | 60 | 33 | <20 | -45~+70 | SMA-Female |
*:50% CTRL to final value
Truth table
| C to | D4 | D3 | D2 | D1 |
|---|
| S1 | 0 | 0 | 0 | 1 |
| S2 | 0 | 0 | 1 | 0 |
| S3 | 0 | 0 | 1 | 1 |
| S4 | 0 | 1 | 0 | 0 |
| S5 | 0 | 1 | 0 | 1 |
| S6 | 0 | 1 | 1 | 0 |
| S7 | 0 | 1 | 1 | 1 |
| S8 | 1 | 0 | 0 | 0 |
| All off | 0 | 0 | 0 | 0 |
Operating Ranges
| 项目 | 最小 | 典型 | 最大 | 单位 |
|---|
| VDD 供电电压 | 4.8 | 5 | 5.2 | V |
| 供电电流 | / | / | 100(SPST)
100(SP2T)
150(SP3T)
150(SP4T)
200(SP8T) | mA |
| V1(D1～D4) | 1.5 | 3.3 | 3.6 | V |
| V0(D1～D4) | -0.3 | 0 | 0.6 | V |
| 型号 | 频率
(GHz) | 驻波 | 插入损耗(dB) | 隔离度
(dB) | 功率
(dBm) | 切换时间 (ns) | 工作温度(℃) | 接口 |
|---|
| TPS2X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 3 | 60 | 37 | <100 | -45~+85 | SMA-F |
| TPS4X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 3 | 60 | 37 | <100 | -45~+85 | SMA-F |
| TPS8X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 4 | 60 | 37 | <100 | -45~+85 | SMA-F |
| TPS16X-0.4G8.5-60S1-A | 0.4~8.5 | 1.3 | 5 | 60 | 37 | <100 | -45~+85 | SMA-F |
*:50% CTRL to final value
Truth table
| C to | D5 | D4 | D3 | D2 | D1 |
|---|
| S1 | 0 | 0 | 0 | 0 | 1 |
| S2 | 0 | 0 | 0 | 1 | 0 |
| S3 | 0 | 0 | 0 | 1 | 1 |
| S4 | 0 | 0 | 1 | 0 | 0 |
| S5 | 0 | 0 | 1 | 0 | 1 |
| S6 | 0 | 0 | 1 | 1 | 0 |
| S7 | 0 | 0 | 1 | 1 | 1 |
| S8 | 0 | 1 | 0 | 0 | 0 |
| S9 | 0 | 1 | 0 | 0 | 1 |
| S10 | 0 | 1 | 0 | 1 | 0 |
| S11 | 0 | 1 | 0 | 1 | 1 |
| S12 | 0 | 1 | 1 | 0 | 0 |
| S13 | 0 | 1 | 1 | 0 | 1 |
| S14 | 0 | 1 | 1 | 1 | 0 |
| S15 | 0 | 1 | 1 | 1 | 1 |
| S16 | 1 | 0 | 0 | 0 | 0 |
| All off | 0 | 0 | 0 | 0 | 0 |
Operating Ranges
| 项目 | 最小 | 典型 | 最大 | 单位 |
|---|
| VDD 供电电压 | 4.5 | 5 | 5.5 | V |
| 供电电流 | / | / | 600(SP2T)
700(SP4T)
800(SP8T)
1000(SP16T) | mA |
| V1(D1～D5) | 1.5 | 3.3 | 3.6 | V |
| V0(D1～D5) | -0.3 | 0 | 0.6 | V |
| 型号 | 频率
(GHz) | 驻波 | 插入损耗(dB) | 隔离度
(dB) | 功率
(dBm) | 切换时间 (ns) | 工作温度(℃) | 接口 |
|---|
| TPS2X-0.4G8.5-60S-A | 0.4~8.5 | 1.4 | 4 | 60 | 33 | <20 | -40~+70 | SMA-F |
| TPS4X-0.4G8.5-60S-A | 0.4~8.5 | 1.4 | 5 | 60 | 33 | <20 | -40~+70 | SMA-F |
| TPS8X-0.4G8.5-60S-A | 0.4~8.5 | 1.5 | 6 | 60 | 33 | <20 | -40~+70 | SMA-F |
| TPS16X-0.4G8.5-60S-A | 0.4~8.5 | 1.5 | 7 | 60 | 33 | <20 | -40~+70 | SMA-F |
*:50% CTRL to final value
Truth table
| C to | D5 | D4 | D3 | D2 | D1 |
|---|
| S1 | 0 | 0 | 0 | 0 | 1 |
| S2 | 0 | 0 | 0 | 1 | 0 |
| S3 | 0 | 0 | 0 | 1 | 1 |
| S4 | 0 | 0 | 1 | 0 | 0 |
| S5 | 0 | 0 | 1 | 0 | 1 |
| S6 | 0 | 0 | 1 | 1 | 0 |
| S7 | 0 | 0 | 1 | 1 | 1 |
| S8 | 0 | 1 | 0 | 0 | 0 |
| S9 | 0 | 1 | 0 | 0 | 1 |
| S10 | 0 | 1 | 0 | 1 | 0 |
| S11 | 0 | 1 | 0 | 1 | 1 |
| S12 | 0 | 1 | 1 | 0 | 0 |
| S13 | 0 | 1 | 1 | 0 | 1 |
| S14 | 0 | 1 | 1 | 1 | 0 |
| S15 | 0 | 1 | 1 | 1 | 1 |
| S16 | 1 | 0 | 0 | 0 | 0 |
| All off | 0 | 0 | 0 | 0 | 0 |
Operating Ranges
| 项目 | 最小 | 典型 | 最大 | 单位 |
|---|
| VDD 供电电压 | 4.5 | 5 | 5.5 | V |
| 供电电流 | / | 200 | / | mA |
| D1～D5 Digital input high | 1.5 | 3.3 | 3.6 | V |
| D1～D5 Digital input low | -0.3 | 0 | 0.6 | V |
