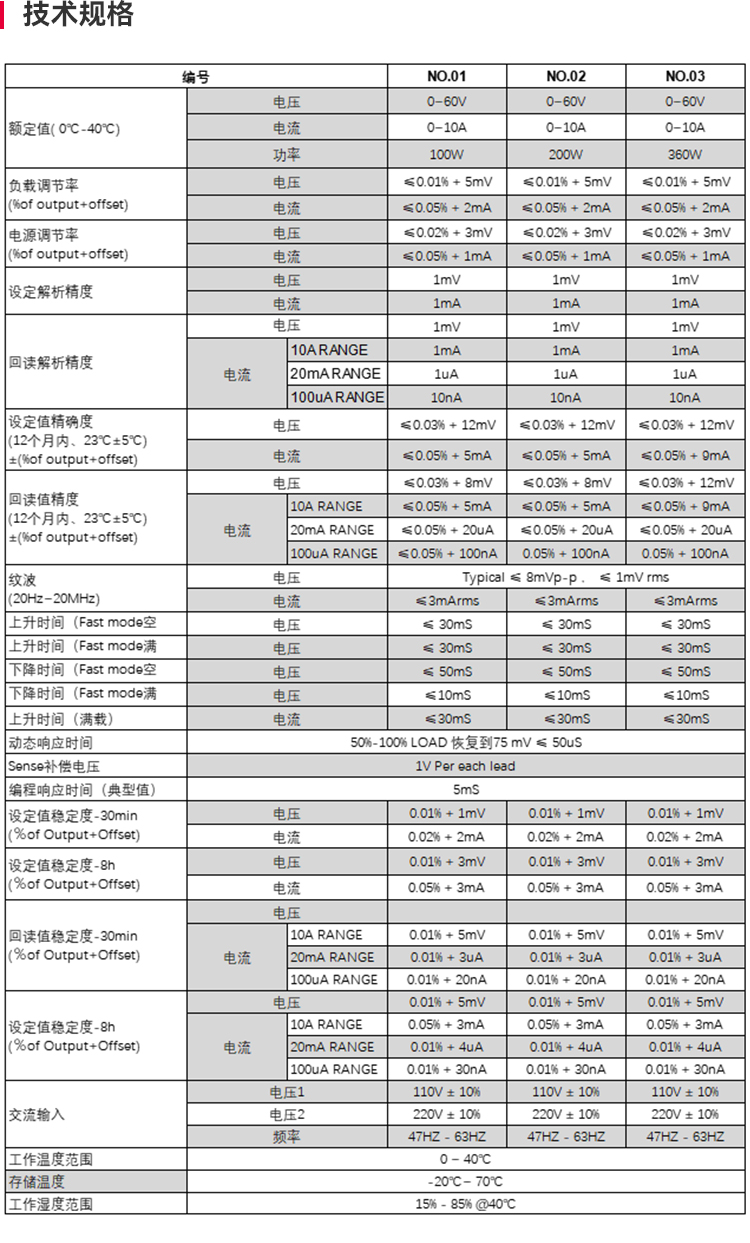

| 额定值(0℃-40℃） | 电压 | 0-60V | 0-60V | 0-60V |
| 电流 | 0-10A | 0-10A | 0-10A |
| 功率 | 100W | 200W | 360W |
| 负载调节率(%of output+offset) | 电压 | ≤0.01%+ 5mV | ≤0.01%+ 5mV | ≤0.01%+ 5mV |
| 电流 | ≤0.05%+ 2mA | ≤0.05%+ 2mA | ≤0.05%+ 2mA |
| 电源调节率(%of output+offset) | 电压 | ≤0.02%+3mV | ≤0.02%+3mV | ≤0.02%+3mV |
| 电流 | ≤0.05%+ 1mA | ≤0.05%+ 1mA | ≤0.05%+ 1mA |
| 设定解析精度
(%of output+offset) | 电压 | 1mV | 1mV | 1mV |
| 电流 | 1mA | 1mA | 1mA |
| 回读解析精度 | 电压 | 1mV | 1mV | 1mV |
| 电流 | 10A RANGE | 1mA | 1mA | 1mA |
| 20mARANGE | 1uA | 1uA | 1uA |
| 100UARANGE | 10nA | 10nA | 10nA |
| 设定值精确度
(12个月内、23℃±5℃)
±(%of output+offset) | 电压 | ≤0.03%+ 12mV | ≤0.03%+ 12mV | ≤0.03%+ 12mV |
| 电流 | ≤0.05%+ 5mA | ≤0.05%+ 5mA | ≤0.05%+ 5mA |
| 回读值精度
(12个月内、23℃±5℃)
;±(%of output+offset) | 电压 | ≤0.03%+ 8mV | ≤0.03%+ 8mV | ≤0.03%+ 8mV |
| 电流 | 10ARANGE | ≤0.05%+ 5mA | ≤0.05%+ 5mA | ≤0.05%+ 5mA |
| 20mARANGE | ≤0.05%+ 20mA | ≤0.05%+ 20mA | ≤0.05%+ 20mA |
| 100UARANGE | ≤0.05%+ 100nA | ≤0.05%+ 100nA | ≤0.05%+ 100nA |
| 纹波
(20Hz-20MHz) | 电压 | Typical ≤ 8mVp-p . ≤ 1mV rms |
| 电流 | ≤3mArms | ≤3mArms | ≤3mArms |
| 上升时间 (Fast mode空 | 电压 | ≤ 30mS/td> | ≤ 30mS | ≤ 30mS |
| 上升时间 (Fast mode满 | 电压 | ≤ 30mS | ≤ 30mS | ≤ 30mS |
| 下降时间 (Fast mode空 | 电压 | ≤ 50mS | ≤ 50mS | ≤ 50mS |
| 下降时间 (Fast mode满 | 电压 | ≤ 10mS | ≤ 10mS | ≤ 10mS |
| 上升时间 (满载) | 电压 | ≤ 30mS | ≤ 30mS | ≤ 30mS |
| 动态响应时间 | 50%-100% LOAD 恢复到75 mV ≤ 50uS |
| Sense补偿电压 | 1v Per each lead |
| 编程响应时间(典型值) | 5mS |
| 设定值稳定度-30min
(%of output+offset) | 电压 | 0.01%+ 1mV | 0.01%+ 1mV | 0.01%+ 1mV |
| 电流 | 0.02%+ 2mA | 0.02%+ 2mA | 0.02%+ 2mA |
| 设定值稳定度-8h
(%of output+offset) | 电压 | 0.01%+ 3mV | 0.01%+ 3mV | 0.01%+ 3mV |
| 电流 | 0.05%+3mA | 0.05%+3mA | 0.05%+3mA |
| 设定值稳定度-8h
(%of output+offset) | 电压 | 0.01%+ 3mV | 0.01%+ 3mV | 0.01%+ 3mV |
| 电流 | 0.05%+3mA | 0.05%+3mA | 0.05%+3mA |
| 回读值稳定度-30min
(%of output+offset) | 电压 |
|
|
|
| 电流 | 10ARANGE | 0.01%+ 5mV | 0.01%+ 5mV | 0.01%+ 5mV |
| 20mARANGE | 0.01%+ 3uA | 0.01%+ 3uA | 0.01%+ 3uA |
| 100UARANGE | 0.01%+ 20nA | 0.01%+ 20nA | 0.01%+ 20nA |
| 设定值稳定度-8h
(%of output+offset) | 电压 | 0.01%+ 5mV | 0.01%+ 5mV | 0.01%+ 5mV |
| 电流 | 10A RANGE | 0.05%+3mA | 0.05%+3mA | 0.05%+3mA |
| 20mARANGE | 0.01%+ 4uA | 0.01%+ 4uA | 0.01%+ 4uA |
| 100UARANGE | 0.01%+ 30nA | 0.01%+ 30nA | 0.01%+ 30nA |
| 交流输入 | 电压1 | 110V ± 10% | 110V ± 10% | 110V ± 10% |
| 电压2 | 220V ± 10% | 220V ± 10% | 220V ± 10% |
| 频率 | 47HZ - 63HZ | 47HZ - 63HZ | 47HZ - 63HZ |
| 工作温度范围 | 0-40°C |
| 存储温度 | -20°C-70°C |
| 工作湿度范围 | 15% - 85% @40°C |
